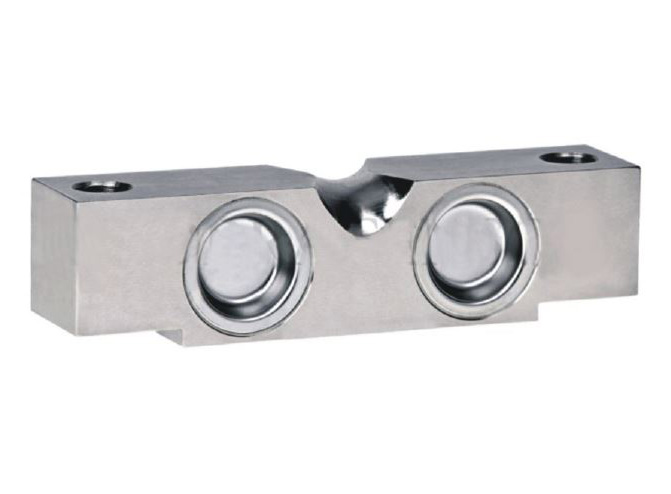

DUAL SHEAR BEAM LOAD CELL (ABL 112)


Wiring Schematic Diagram:

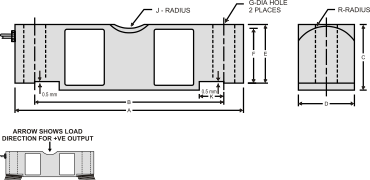

Dimensions:

Features:

  • 5Tf to 1 00 Tf Capacities
  • Triple-Sealing
  • Electroless Nickel Plated

Applications:

  • Truck, Tank and Hopper Weighing
  • Tensile Testing
  • Weighbridge

Parameters:

Standard Capacities (tf.) Excitation 5,10,15,20,23,30,40,50,75,100
Voltage 10 VDC - Maximum 15 VDC Ultimate Overload 300% of Rated Capacity
Nominal Output3.0 mV/V Allowable Side Load50% of Rated Capacity
Non-Linearity ± 0.025 % FSO (Full Scale Output) Side Load Discrimination : 500:1
Hysteresis± 0.02 % FSO Temperature0-60° C
Non-Repeatability± 0.01% FSO Compensated Range
Creep (30 minutes)700 ± 10 Temperature Effect on Output<0.0015 % FSO/
Zero Balance± 1.0 % FSO Temperature Effect on Zero <0.02 % FSO/ C
Input Resistance750 ± 20.0(Ω) Deflection <0.5 mm at FSO
Output Resistance700+-7.0(Ω) Tightening Torque 10 m. kg.
Insulation Resistance≥20000 Mega Ohms at 50 VDC Construction Electroless Nickel Plated Tool Steel
Safe Overload150% of Rated Capacity Environmental Protection Class 1P68
