BENCH SCALE LOAD CELL (ABL 601AC)


Wiring Schematic Diagram:

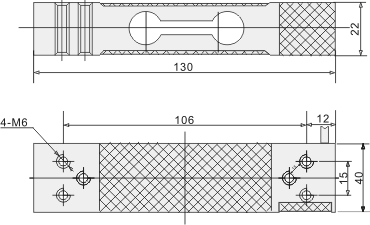

Dimensions:

Features:

  • Single Point Off-center Load Measuring Capability
  • Economical and Low Profile Cell
  • Aluminium-alloy, Colorless anodized
  • Glue sealed

Applications:

  • Bench, Counting & Postal Scales
  • Check Weighers(Recommended platform size : 400x400mm)

Dimensions:

Related Load (kg.) 50, 60, 80, 120, 150,200
Precision C2 / C3 Insulation Resistance(MΩ@VDC)≥5000(50)
Composition Error0.03 / 0.02 Excitation Voltage (VDC)9~12
Rated Output (mv/v)2 ± 5 Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.03 / 0.017
Creep (%FS/30min)0.02 Safe Overload (%FS)120
Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
Input Resistance (Ω)400 ± 10 Defend GradeIP65
Output Resistance (Ω)350 ± 2 Cable4mm, 2mtr
