HIGH CAPACITY COMPRESSION LOAD CELL (ABL 616)


Wiring Schematic Diagram:

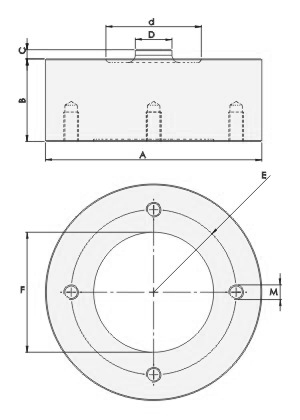

Dimensions:

Capacity A B C D d F E M
100,200,500kg 50 25 5 13 32 34 42 M4*0.7
1T,2T,3T,5T 60 30 5 12 36 42.5 50 M6*1
10T, 20T 115 45 5 20 52 65.4 90 M8*1.25
30T, 50T 155 50 5 44 90 103 125 M12*1.75
100T 205 60 7.5 65 130 145 165 M16*2

Features:

  • It has the ability to protect against IP67
  • Low profile
  • It is suitable for industrial motion weighing
  • It is highly free of interface
  • It is explosion proof where the version is Ex ib || Ct4

Applications:

  • Check weighers
  • Counting
  • Bench
  • Postal scales and so on

Parameters:

Related Load (kg.) 100kg to 100Ton
Precision C2 Insulation Resistance(MΩ@VDC) ≥5000(50)
Composition Error 0.03 Excitation Voltage (VDC)9~12
Rated Output (mv/v) 2.0 ±1% Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
Repeatability (%FS)0.01 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
Creep (%FS/30min)0.02 Safe Overload (%FS)120
Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
Input Resistance (Ω)750 ± 10 Defend GradeIP66
Output Resistance (Ω)700 ± 2 Cable6mm, 5mtr
