MINIATURE COMPRESSION LOAD CELL (ABL 616 M)


Wiring Schematic Diagram:

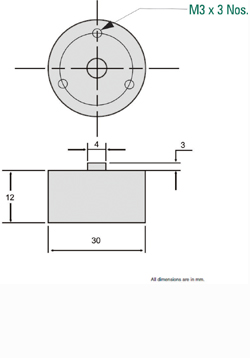

Dimensions:

(ABL-616-M) Miniature Compression Load Cells are suitable for applications where Spaces are constraint.

  • This is constructed from heat treated stainless steel suitable for harsh and hygienic industrial applications.
  • It is sealed for IP-65 protection and it has long life.
  • Extremely suitable for automation, tensile testing and force measurements.
  • ABL-616-M is available with integral load button.

Features:

  • 50Kgf to 1000 Kgs Capacities.
  • Complete environmental protection IP65 class.
  • Standard output 2.0 m V/V available.
  • Hardened stainless steel construction.
  • Miniature and low profile.
  • Easy for installation.
  • Custom built design available on request

Applications:

  • Tensile testing
  • Force and impact test
  • Robotics
  • Test Bench
  • Automation
  • Industrial Force Measurement

Parameters:

Capacities (Kgs.) : 50,100, 200, 500, 1000 Excitation Voltage : 10 VDC - Maximum 15 VDC
Nominal Output : 2.0 mV/V Non - Linearity : < ± 0.1 % FSO (Full Scale Output)
Hysteresis : < ± 0.1 % FSO Non-Repeatability : < ± 0.1 % FSO
Creep (30 minutes) : < ± 0.03 % FSO Input Resistance : 390 ± 10 Ohms
Output Resistance: 350 ± 3 Ohms Insulation Resistance (50V) : > 1000 Mega Ohms
Cable Length (4 core) : 1.5 Mtr. Safe Overload : 150 %
Ultimate Overload of Rated : 300 % 0 Temp. Compensated Range : 0-60 C
0 Temp. Effect on Output : < 0.005 % FSO/ C 0 Temp. Effect on Zero : < 0.005 % FSO/ C
Deflection : < 0.5 mm at FSO Material of Construction : Stainless Steel-17-4 PH
Environmental Protection Class : IP65
