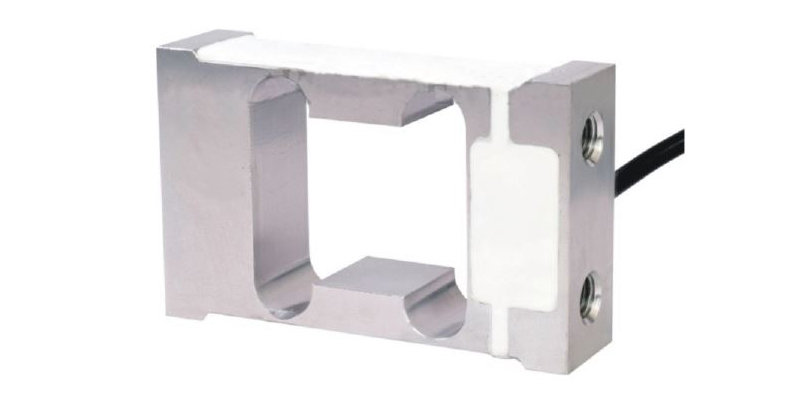

PACKAGING MACHINE LOAD CELL (ABL 650 L6H5)


Wiring Schematic Diagram:

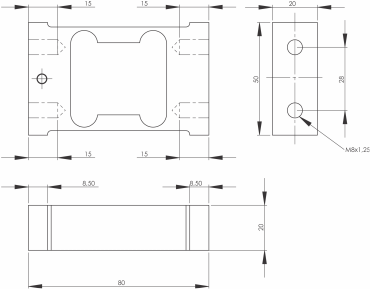

Dimensions:

Specifications:

  • Low Profile
  • Large capacity range
  • In the direction of compression and tension
  • Anodized aluminium alloy
  • In measuring area coated with silicon
  • Special shielded cable
  • Off-axis high strength to resist the forces

Parameter:

Accuracy class C3 Temparature range safe(°C) -30/+70
Capacity / Emax (kg)8,20 Maximum safe central overload (%R.O)150
Output impedance(Ω)350 ± 3 Ultimate central overload (%R.O)300
Rated Output (m V/V)2,0 Excitation (VDC)5~15
Maximum number of load cell interval Nmax1000,3000 Input impedance(Ω)395 ± 20
Emax/Vmin4000,1000 Insulation resistance (MΩ)>1000
Minimum dead load output return (%R.O)< ± 0,0500 Constructionanodized aluminium alloy
Zero Balance (%R.O) ± 1 Environment ProtectionIP67
Temparature effect on Zero (% R.O/5 °C)< ± 0.015 Cable Type4x0,22mm
Temparature effect on Output (% R.O/5 °C)< ± 0.017 Cable length0,5 m
Compensated temparature range ( °C)-10/+40 Platform30x30 cm
