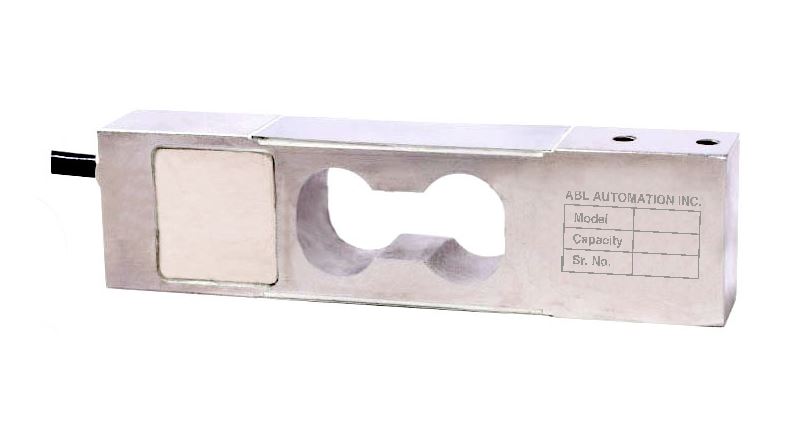

MINIATURE LOAD CELL ( ABL 651 )


Wiring Schematic Diagram:

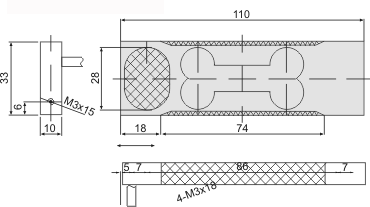

Dimensions:

Features:

  • Up to 1,00,000 divisions short term precision and compression application
  • Off-center load compensated
  • Single point 200X200mm platform
  • IP66 protection

Applications:

  • Jewellery scales
  • Diamond scales
  • Small bagging machines
  • Thread tension measurement

Dimensions:

Rated Load (Grams) 20, 30, 60, 300, 600, 1000, 1200, 2000, 3000
Precision C2 / C3 Insulation Resistance(MΩ@VDC)≥5000(50)
Composition Error0.005 Excitation Voltage (VDC)9~12
Rated Output (mv/v)1.6 ± 0.5 Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03/0.017
Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.03/0.017
Creep (%FS/30min)0.02 Safe Overload (%FS)120
Zero Balance (%FS)±1 Ultimate Overload (%FS)150
Input Resistance (Ω))400±10 Defend GradeIP65
Output Resistance (Ω)350± 2 Cable4mm, 1ft.
