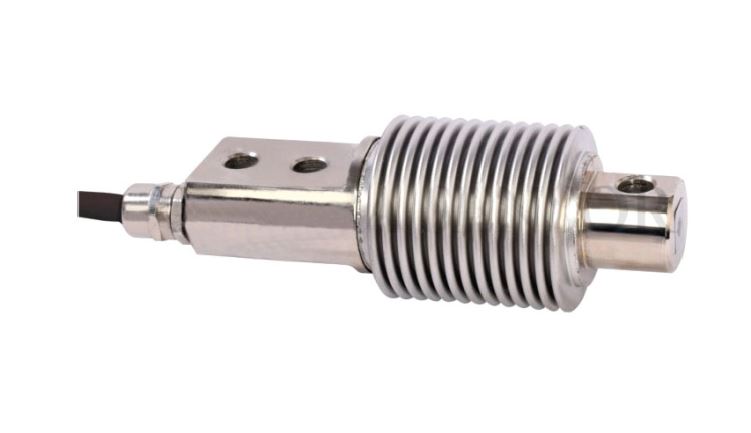

BELLOW TYPE LOAD CELL (ABL 910)


Wiring Schematic Diagram:

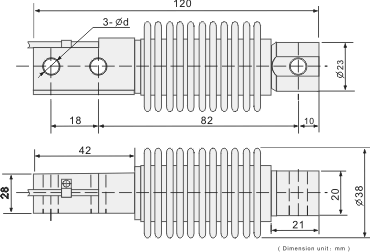

Dimensions:

Features:

  • Alloy steel & Stainless steel structure;
  • bellows hermetically sealed by laser
  • Nickel plated
  • Waterproof & anti-corrosion
  • Suitable for multiform environments

Applications:

  • Electronic Platform Scales
  • Hooper Scales
  • Other Electronic Weighing Devices

Dimensions:

Related Load (Kg) 10, 20, 30, 50, 100, 200, 300, 350, 500
Precision C3 Insulation Resistance (MΩ) ≥5000(50)
Composition Error ± 0.02 Excitation Voltage (VDC)9~12
Rated Output (mv/v)2 ± 0.002 Compensated temp. Range (°C)-10~+40
Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-20~+55
Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.019
Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.011
Creep (%FS/30min)0.016 Safe Overload (%FS)120
Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
Input Resistance (Ω)350 ± 5 Defend GradeIP68
Output Resistance (Ω)350 ± 3 Cable4mm, 3mtr
