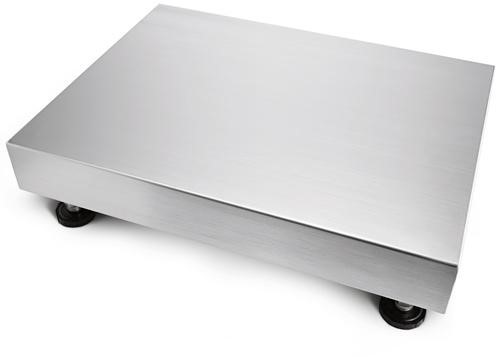

ABL BENCH SCALE(ABL 5201)

Capacity:

  6 to 350lb/ 3 to 150kg

Readability:

  0.01lb/ 0.005kg

Pan Size:

  12.5” x 9.5” to 19.5” x 15.75”/ 320 x 240 to 500 x 400 mm

Features:

  • Painted models are IP65 protected and thus suitable for industrial use.
  • Stainless steel models are IP67 protected and thus suitable for industrial use in damp environments (AISI type 304 stainless steel)
  • One Aluminum/Stainless Steel Single point load cell
  • Rugged construction with overload stop
  • Easy to clean thanks to innovative design, minimal horizontal surface
  • 4 adjustable leveling feet
Weighing Capacity lb (kg) Dimensions Inch (mm) Max. preload lb (kg) Max. overload,center lb (kg) Max. overload, Side lb (kg) Max. overload, center lb (kg)
6 (3) 12.5 x 9.5 (320 x 240) - 55 (25) 45 (20) 33 (15)
14 (6) 12.5 x 9.5 (320 x 240) 0-14 (0-6) 55 (25) 45 (20) 33 (15)
35 (15) 12.5 x 9.5 (320 x 240) 2-11 (1-5) 55 (25) 45 (20) 33 (15)
65 (30) 15.75 x 11.75 (400 x 300) 6 (3) 220 (100) 130 (60) 90 (40)
135 (60) 15.75 x 11.75 (400 x 300) 14 (6) 220 (100) 130 (60) 90 (40)
65 (30) 19.7 x 15.75 (500 x 400) 6 (3) 450 (200) 330 (150) 220 (100)
135 (60) 19.7 x 15.75 (500 x 400) 14 (6) 450 (200) 330 (150) 220 (100)
330 (150) 19.7 x 15.75 (500 x 400) 35 (15) 450 (200) 330 (150) 220 (100)
