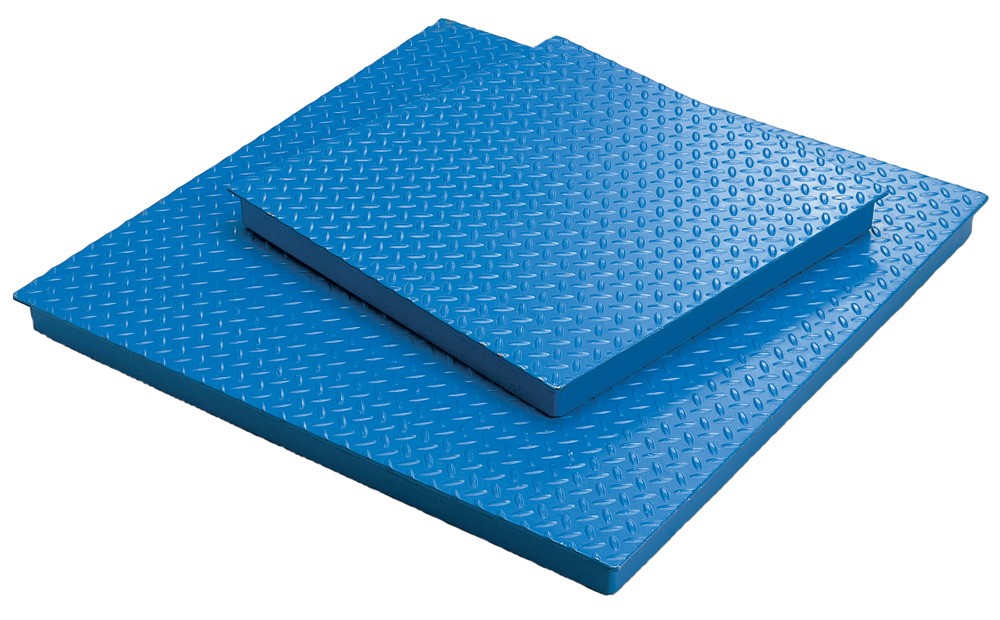

ABL FLOOR SCALE(ABL 5301)

Weigh pallets, drums and oversized items on a variety of deck sizes starting at 2x2 feet to the universal 6x8 feet model on up to any custom size and capacity. Easily installed above or below ground and requires no shimming. Built from carbon steel, aluminum or stainless steel this durable unit takes a beating and still delivers fast and accurate readings by using shear beam load cells. Capacities from 500 to 20,000 lbs/ 250-10,000 Kg.

Capacity:

  500 to 20,000 lbs/ 250-10,000 Kg.

Pan Size:

  2x2 feet/600 x 600mm to 6x8 feet/1800 x 2400mm

Features:

  • Heavy-duty carbon steel, aluminum or stainless-steel construction
  • Easily set up in almost any environment
  • Rugged design for the most abusive applications
  • Available in a multitude of sizes and capacities
  • Optional Ramps and Surround Guards for easy access and fork lift protection
  • Heavy-duty carbon steel, aluminum or stainless-steel construction.
  • Quick and easy above or below ground installation
  • Optional all-weather j-box and connectors for outdoor use
Capacity (lbs) Size (ft) Shipping Weight (lbs)
1,000 30” X 30” 125
1,000 2 X 2 100
2,000 3 X 3 160
5,000 3 x 3 260
5,000 4 x 4 380
10,000 4 X 4 380
5,000 4 X 5 460
10,000 4 X 5 460
5,000 4 X 6 600
10,000 4 X 6 600
5,000 5 X 5 600
10,000 5 X 5 600
10,000 5 X 7 1,000
20,000 5 X 7 1,400
20,000 6 X 8 1,860
