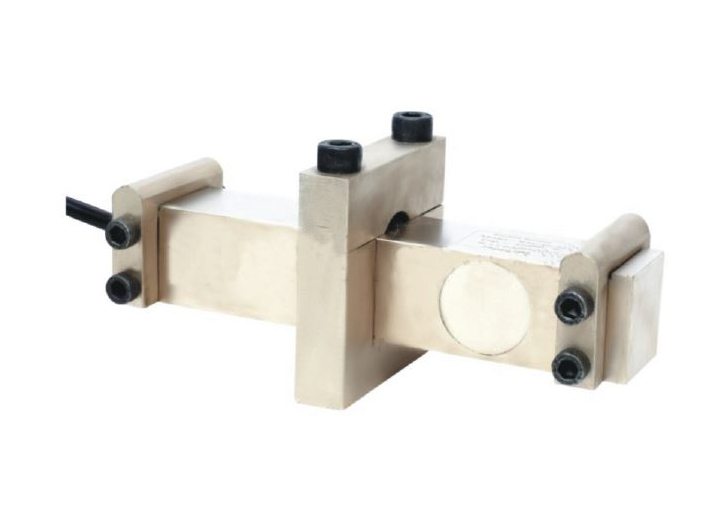

ROPE TENSION LOAD CELL (ABL 307)

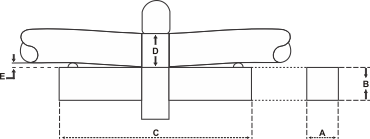

ROPE Tension	Capacity	d	A	B	C	E
1,2,5	0.5 T	8-16	32	32	172	7.5
5,10	1T	24-36	32	32	172	7.5
15	2 T	upto 40	32	32	172	7.5
25	3 T	upto 60	38	38	228	7.5
40	5 T	upto 72	38	38	228	7.5
50	7.5 T	upto 80	50	50	300	7.5

Features:

• Rope tension ranging from 0.5 Tf to 7.5
• Complete environmental protection IP-65 class
• Standard output 1.0 mV/V available
• Can be provided to accomodate multirope applications - up to 4 ropes

Applications:

• Elevator load monitor.
• Specially designed for protecting cranes and hoists from overload.
• Tension measurement in stay ropes, suspension ropes and railway catenary ropes.
• Vehicle pull test.
• Ship Bollard pull test.

Parameter:

Standard Capacities (Tf.) 0.5,1,2,3,4,5,7.5	Insulation Resistance (50V) >1000 Mega Ohms
Excitation Voltage 10 VDC - Maximum 15VDC	Cable Length (4 core) Upto 2T-5 M, Above 2T-10M
Nominal Output 1 mV/V	Safe Overload150% of Rated Capacity
Non-Linearity <±5.0% FSO for range upto 20%	Ultimate Overload300% of Rated Capacity
<±2.0% FSO for range above 20%	0 Temp. Compensated Range0-60 °C
Hysteresis <±0.1% FSO (Full Scale Output)	0 Temp. Effect on Output <0.005 % FSO/C
Non-Repeatability <±0.1% FSO	0 Temp. Effect on Zero <Ã,0.005 % FSO/C
Creep (30 minutes) <±0.03 % FSO	Deflection <0.5 mm at FSO
Input Resistance 390 Ohms	Material of ConstructionTool Steel
Output Resistance 350 Ohms	Environmental Protection ClassIP67
